Security cameras are only as reliable as the cables that connect them. A camera can be perfectly positioned, properly configured, and fully powered and still fail to record if its cable has a fault. Cable problems are the single most common cause of security camera failures that do not involve the camera itself, yet they are frequently misdiagnosed as camera defects.
Why Cable Failures Are So Common in Security Systems
Security camera cables endure some of the harshest conditions of any installed technology. They run through attic spaces that reach 140 degrees in summer, through exterior walls exposed to moisture, under parking lot asphalt, and along rooflines that flex during thermal expansion. Over time, insulation degrades, connectors corrode, and rodents chew through runs in wall cavities.
In commercial installations, most cameras use one of three cable types:
- Coaxial cable (RG59, RG6): Used in analog and HD-over-coax systems. Carries both video signal and power via a siamese cable. Susceptible to oxidation at the BNC connector and signal loss over long runs.
- Cat5e/Cat6 Ethernet cable: Used in IP camera systems. Carries data and power (when PoE is used) over the same wire. Susceptible to damage at the RJ45 termination and to signal degradation from sharp bends, staple damage, and runs near high-voltage electrical lines.
- Power-only cables: In non-PoE analog systems, a separate 12V DC or 24V AC power cable runs alongside the video cable. These fail less often but cause total camera outages when they do.
Common Symptoms of Cable Failure
Completely Black or Missing Image
A camera showing a fully black screen or appearing offline in your NVR is most often a power delivery problem. Check whether the camera indicator light is on. If the light is off and the camera is PoE-powered, the PoE switch port may have failed, the cable may have a break, or the RJ45 termination is not making contact. If the camera is analog and powered separately, check the power supply and the DC pigtail connector first.
Flickering or Intermittent Video
Intermittent signal is the hallmark of a loose connector or a partial wire break. The video cuts in and out, sometimes correlated with temperature changes as the cable expands and contracts with heat. In PoE systems, an intermittent connection causes the camera to cycle online then offline. Check both RJ45 terminations — a single mis-seated wire in the connector causes exactly this behavior.
Noisy, Grainy, or Color-Shifted Image
Signal interference visible as rolling bars, color tint, or static grain in a coaxial system usually indicates a ground loop or RF interference pickup. This happens when the coaxial shield is not properly grounded or when the cable runs too close to a high-current electrical conduit. In IP systems, a damaged Cat6 cable that has lost its twist geometry picks up interference and causes packet errors, appearing as artifacts or image freezing.
Night Vision Works But Daytime Image Is Washed Out
This symptom in PoE cameras often indicates the cable is delivering marginal power — enough to run the camera sensor but not enough to power the IR LEDs or the full imaging circuit. A long cable run with a damaged pair loses voltage over distance.
Step-by-Step Cable Troubleshooting Process
Step 1: Swap the Camera First
Before touching any cable, connect a known-good camera to the same cable run at the camera end. If the known-good camera also fails, the cable or the NVR port is the problem. If the known-good camera works perfectly, the original camera is faulty — not the cable.
Step 2: Test at the NVR End
Connect the cable run to a known-good port on your NVR or PoE switch. If the camera now works, the original NVR port has failed. NVR and PoE switch ports can burn out individually, especially after power surges.
Step 3: Check the Connectors

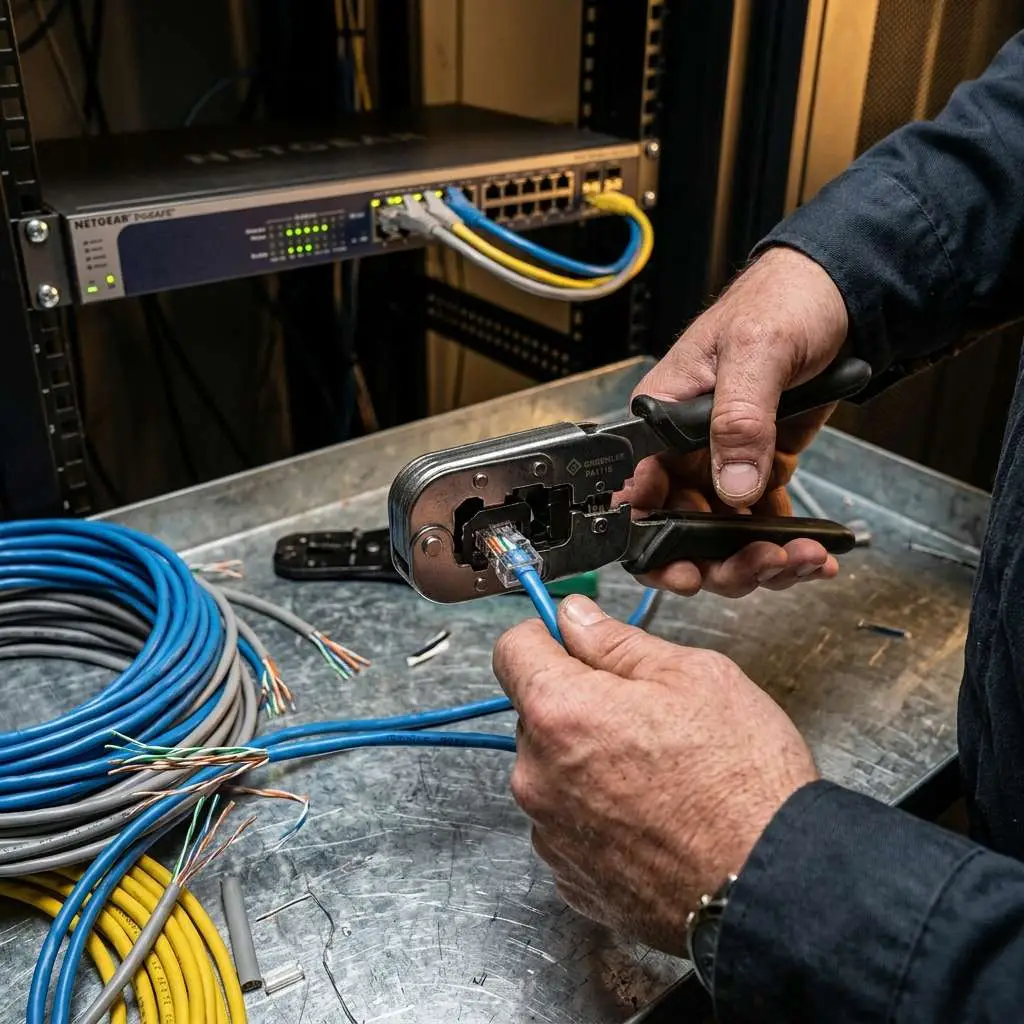

The majority of cable failures occur within 12 inches of a termination, not in the middle of the run. For RJ45 connectors, visually inspect for bent pins, oxidation, or a loose crimp. For BNC connectors on coaxial cable, check that the center pin is fully seated and the shield braid is making solid contact with the connector body. Re-terminate both ends if in doubt — a new RJ45 crimp takes under five minutes.
Step 4: Use a Cable Tester
A basic RJ45 cable tester ($15-$30) will verify continuity on all 8 pairs and identify which wire has broken. A TDR (time-domain reflectometer) can locate the exact position of a break in the cable run — extremely useful in long runs through conduit where accessing the mid-point is difficult.
Step 5: Check for Physical Damage Along the Run
Walk the visible portions of the cable run and look for kinks, staple punctures, pinched sections in door frames, rodent damage, and areas where conduit has shifted. In exterior runs, check where the cable enters the building — moisture entry at that point is a common cause of slow degradation.
Step 6: Measure PoE Voltage at the Camera End
A PoE voltage tester or multimeter can verify that the camera is receiving adequate voltage (typically 44-57V for IEEE 802.3af/at PoE). Voltage below 44V at the camera indicates either a long run exceeding the cable capacity or a damaged pair increasing resistance.
When to Call a Professional
DIY troubleshooting works well for accessible cable runs with straightforward terminations. But several situations warrant a professional assessment:
- Cables buried in conduit or concrete: Pulling a replacement requires the right tools and experience to avoid damaging adjacent runs.
- Exterior underground runs: Excavating and replacing direct-burial cable requires proper waterproofing and burial depth.
- Systems with ground loops across multiple buildings: Resolving multi-building ground loop issues requires proper bonding and may involve your electrical system.
- Post-lightning strike failures: A nearby lightning strike can damage not just cables but cameras, NVRs, and PoE switches simultaneously. A full system audit is needed before assuming a single cable is the only casualty.
Preventing Cable Failures
The best cable troubleshooting is the kind you never have to do. A few installation practices dramatically reduce failure rates:
- Use outdoor-rated, UV-resistant cable for any exterior runs — standard Cat6 degrades rapidly in sunlight.
- Run cable in conduit wherever possible, especially through attic spaces and exterior walls.
- Use weatherproof RJ45 connectors or fully sealed waterproof junction boxes at exterior connection points.
- Install surge protectors on both the NVR and on individual cameras exposed to lightning risk.
- Label every cable run at both ends — 30 seconds on installation day saves hours during troubleshooting years later.
- Schedule annual inspections of all exterior connectors, especially in climates with significant temperature swings.
Frequently Asked Questions
How long should security camera cables last?
A properly installed indoor cable run should last 20+ years. Exterior runs in conduit last 10-15 years on average. Exposed exterior runs without conduit may need attention within 5-7 years in harsh climates.
Can I extend a security camera cable run?
Yes. Coaxial cable can be extended with BNC barrel connectors, though each connection point is a potential failure. Cat6 runs for IP cameras are limited to 328 feet per segment; beyond that, use a PoE extender or a mid-span switch. Never splice two cables with wire nuts — this is a common cause of the intermittent failures described above.
Is it cheaper to repair or replace a damaged cable run?
If the break is at a termination (within 12 inches of an end), re-termination is always cheaper. If the break is mid-run in an accessible location, splicing with a proper weatherproof junction box is viable. If the run is long, buried, or inaccessible with multiple damage points, full replacement is the better long-term investment.
